CMM BRIDGE | UNIVERSAL

THE NEW GENERATION OF CMM, THE RESULT OF COORD3'S FORTY YEARS OF EXPERIENCE

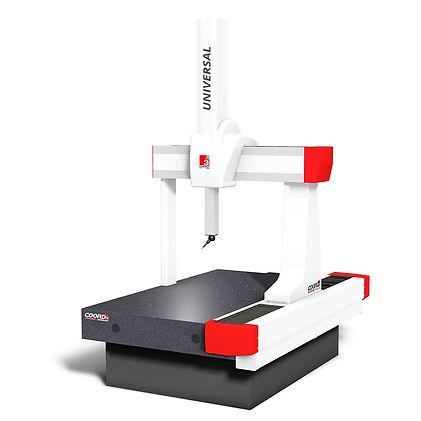

The UNIVERSAL family   represents the latest generation CMM  . Ideal for both traditional point-to-point measurements and for the most advanced contact and laser scanning cycles. The exceptional structural rigidity of the UNIVERSAL series   makes it particularly suitable for the use of 5-axis scanning systems and for measuring gears and cogwheels.
The features are specifically designed to reduce the number of parts, simplify construction and reduce maintenance costs and times.

The COORD3 UNIVERSAL series  integrates, for the first time on the market, the automatic thermal compensation system with wireless technology. The fully automatic system dynamically corrects errors induced by environmental temperature variations in the temperature range 16-26 ° C. Furthermore, the use of high resolution optical lines (0.1 µm) released from the support, avoid distortions induced by deformations of the main structure.
To allow installation of a CMM with high dynamic performance in production environments, the UNIVERSAL series can be equipped with  an environmental monitoring system .

CMM BRIDGE | ARES

HIGH PERFORMANCE FOR DIMENSIONAL CONTROL FOR METROLOGY APPLICATIONS IN DIFFERENT AREAS.

The ARES are characterized by an overall height contained less than the majority of the CMM on the market, and are also available with a lowered section support to reduce the overall height of an additional 100 mm.
This feature makes Ares the ideal solution for control laboratories with low ceilings.

ARES CMMs can be supplied with manual or CNC configuration, with the option to upgrade a manual unit to a full CNC version at a later date.
Two levels of performance are available :

ARES: for standard applications

ARES NT:  for performance with higher requirements. ARES NT has the Z-axis column in silicon carbide which increases the overall rigidity of the measuring platform. This unique CMM system for high precision metrology applications uses the full range of Renishaw scanning technologies.
ARES is available in versions with bridge widths of 500 mm and 700 mm and undoubtedly stands out as the ideal CMM for workshops.

CMM BRIDGE | BENCHMARK

ECONOMICAL HIGH PERFORMANCE CMM FOR HIGH PRECISION CONTROL OF SMALL AND MEDIUM PARTS.

The open structure of the  BENCHMARK  guarantees excellent ergonomics. Its compact size adapts to quality control rooms or production environments.
The BENCHMARK complete with air bearings guarantees an accuracy of 2.5 microns. Standard equipment includes a standard Renishaw touch probe , and can be supplied with a motorized probe head for fully automated control applications.
BENCHMARK is available in two manual or CNC configurations. Manual machines can be upgraded to the full CNC version later on site, offering the possibility of a two-phase investment.

BENCHMARK is the ideal CMM for small workshops .

CMM BRIDGE | KRONOS

CMM BRIDGE FOR MEASURING LARGE MECHANICAL PARTS WITHOUT THE NEED FOR DEDICATED FOUNDATIONS.

The robust structure and the complete system of protection of the structure by means of guards and bellows, allow the KRONOS series to be able to operate in different types of production environments, from the Metrology Room to the production environments.

This CMM is equipped with a portable lever unit for manual control of motorized movement (Arkey).
The KRONOS series   is also available in the NT version  , equipped with the innovative Silicon Carbide mandrel for even greater metrological performance.

CMM GANTRY | MCT NT

THE NEW GANTRY SERIES WITH THE USE OF THE MOST ADVANCED TECHNOLOGIES

The MCT NT series is characterized by an innovative mechanical design that guarantees the maintenance of metrological performance over time, reducing the costs of periodic calibrations.

The MCT NT is also available in the NT LIGHT configuration , ie a CMM equipped with a Z spindle in light aluminum alloy and a " Single Read " system on the x axis.

CMM GANTRY | MCT STARLIGHT

THE CMM WITH MEDIUM / LARGE PILLARS, CHARACTERIZED BY AN OPTIMAL STRUCTURAL RIGIDITY AND SUITABLE FOR EVERY NEED.

The MCT SL series offers medium to large CMM Gantry which are notable for their excellent structural stability and adaptability.
They can be configured to the requirements of any measurement application and are available in a wide range of sizes.

The  MCT StarLight  is also available in the NT configuration, ie a CMM equipped with a Z spindle in light aluminum alloy and a "Single Read" system on the x axis.

CMM GANTRY | MCT PLUS

THE WIDE-RANGING CMM DESIGNED FOR INDUSTRIAL WORKSHOP ENVIRONMENTS.

MCT Plus is the line of large pillar measuring machines for industrial metrological applications.

The particular construction structure, the "Dual Drive" and "Dual Read" reading system on the side members, limit structural deformations during movements, guaranteeing excellent metrological performance.

GANTRY MCT PLUS systems  stand out in the inspections of large components, such as marine engines and marine transmissions, structures used in an aeronautics, rotors and components for nuclear and thermal power plants and components of wind turbines.

CMM HORIZONTAL | SWAN SI

HORIZONTAL ARM MEASURING SYSTEM WITH LONGITUDINAL GUIDE X FIXED TO THE GROUND (“RUNWAY” ARCHITECTURE)

The SWAN SI series offers a technically advanced and cost-efficient solution for dimensional control of components with thin sheet or plastic walls typical of the automotive industry.

The CMM SWAN SI feature air bearings on the X axis which is the Z axis which guarantee a result, high-performance and high precision. The X-axis guide is located on the side of the cast iron or granite support plane.

The light and robust mobile carriage built entirely in light aluminum alloy and the sliding system with double mechanical guide with recirculating ball slides on the X longitudinal member guarantee reliability, precision and speed of measurement.

The SWAN SI can be installed on a pneumatic vibration isolation system for use in production environments, without the need for a dedicated foundation for the machine.

CMM HORIZONTAL | SWAN L

HORIZONTAL ARM MEASURING SYSTEM WITH LONGITUDINAL X GUIDE FIXED ON THE WORK SURFACE SIDE (“CONSOLE” ARCHITECTURE).

The SWAN L series by CMM with horizontal arm installed on guides (tracks) allows the machine to be installed flush with the factory floor.
Its coverings of the trampling guides allow the control of large heavy parts, resting either on a separate surface, or on a system installed on the ground or on an automated system.
The "Console" architectures with integral workpiece shelf are extremely modular and simple to configure, ensuring flexibility and programmability typical of Measuring Machines with the speed and intuitive use of traditional measuring gauges.

CMM HORIZONTAL | JUPITER

HORIZONTAL ARM MEASURING SYSTEM WITH LONGITUDINAL GUIDE X FIXED TO THE GROUND ("RUNWAY" ARCHITECTURE) WITH MOVABLE ARM.

The Jupiter CMM is a reliable high performance CMM for direct use in production developed specifically for the control applications of the bodies and sub-assemblies.
JUPITER is designed on the track and is available in single or double arm configurations. It is fully encapsulated to ensure thermal insulation from environmental changes and includes protection from workshop floor contamination.
The built-in open structure, the walkable guards that protect the X sliding and the fully faired structure guarantee maximum accessibility to the measurement area and simplify loading / unloading operations, as well as allowing use directly in production areas.

High dynamics and superior precision distinguish this CMM which can be installed flush with the floor of the factory and is equipped with coverings for the standard foot traffic guides.

Air bearings for both the Y axis and the Z axis are the key elements for a high performance measuring solution. In the double arm configuration, the measurement volumes of the two horizontal arms overlap by 100 mm to allow complete measurements of the entire structure.

ECHO | PORTABLE ARM

6 OR 7 AXIS THREE-DIMENSIONAL MEASURING ARMS

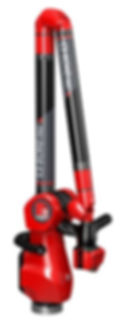

C3 ECHO PRO 6A
The ideal solution for 3D contact and non-contact measurements, precision and comfort at the same time.

Technical Features: immediately ready for use / compatible with the main software available on the market / ergonomic handle / stable and magnetic rest position / automatic detection of the probe diameter.

Working volume: 2.5m / 3m / 3.5m / 4 m / 4.5m

C3 ECHO PRO SCAN 7A
The right combination between the arm and the 3D scanner allow you to optimize time.

Technical features: removable scanner / probe applicable directly on the scanner / high resolution / high precision even on difficult surfaces.

Working volume: 2.5m / 3m / 3.5m / 4 m / 4.5m
